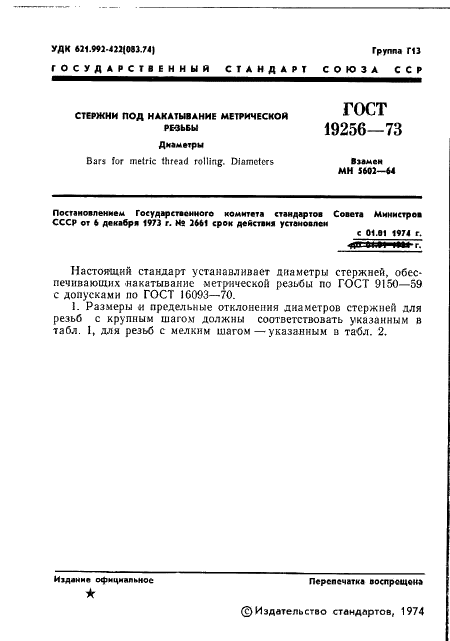

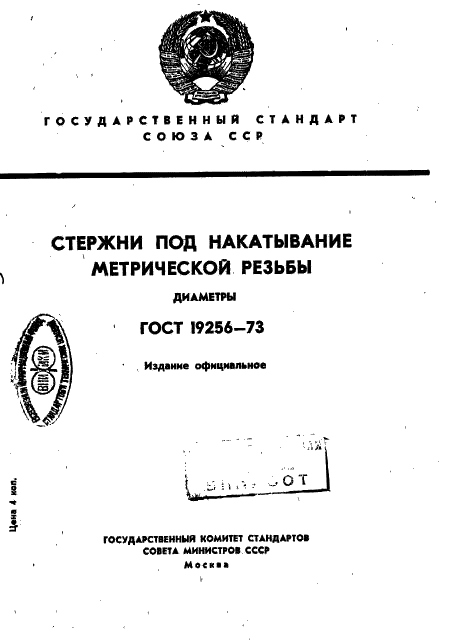

ГОСТ . Стержни под накатывание метрической резьбы. Диаметры

Настоящий стандарт устанавливает диаметры стержней, обеспечивающих накатывание метрической резьбы по ГОСТ 9150-59 с допусками по ГОСТ

Название на англ.:

Bars for metric thread rolling. Diameters

Тип документа:

стандарт

Статус документа:

действующий

Число страниц:

14

Дата актуализации текста:

22.03.2010

Дата актуализации описания:

22.03.2010

Дата издания:

11.02.1974

Дата введения в действие:

01.01.1974

Дата последнего изменения:

23.06.2009

Взамен:

МН 5602-64
