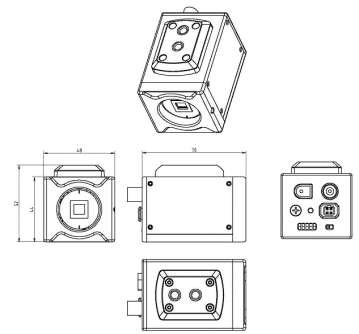

Размеры:

Модели Параметр	DS-2CC102P-IR3	DS-2CC132P (N) - MM	DS-2CC193P-A DS-2CC197P-A
Датчик изображения	1/3 inch SONY Super HAD CCD
Стандарт видеосигнала	PAL / NTSC
Эффективные пиксели	PAL: 500 (H)×582 (V) NTSC: 510 (H)×492 (V)	PAL: 752 (H)×582 (V) NTSC: 768 (H) ×494 (V)	PAL: 752 (H)×582 (V) NTSC: 768 (H)×494 (V)
Мин. Освещенность	0.5Lux @ F1.2
День & Ночь	Electronic
Электронный затвор	1/50 (1/60)s-1/100,000s
Автоматической диафрагмой объектива	DC /Видео
Крепление объектива	C / CS mount
Разрешение по горизонтали	420ТВЛ	480ТВЛ	530ТВЛ
Синхронизация	Внутренняя синхронизация
Video Output	1VppКомпозитный выход
S/N Ratio	Более 48 дБ
BLC	ON / OFF
Рабочая температура	-10℃~60℃
Питание	12VDC, ±10%
Потребляемая мощность	1.5W MAX
Размеры(mm)	48×52×70
Вес	400g

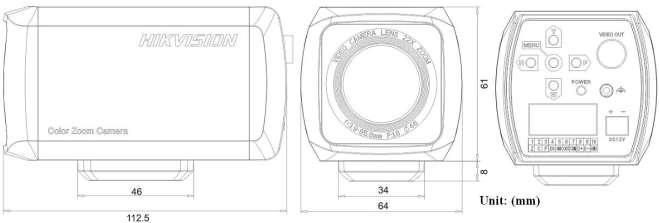

Размеры:

DS-2CZ232P

Parameter Model	DS-2CZ232P
Image Sensor	1/4 inch SONY Interline Transfer Super HAD CCD
Signal System	PAL
Effective Pixels	PAL:752(H)×582(V)
Synchronous	Internal Synchronization
Horizontal Resolution	480 TVL
Video Output	1Vp-p Composite Output(75Ω/BNC)
S/N Ratio	More than 50dB
Day & Night	Electronic
Min. Illumination	[email protected]
Lens	22X Optical Zoom,10X Digital Zoom (OFF/ON)
F1.6, f=mm
Zoom In/Out Speed: 3.1s
Menu	Camera ID	On/Off (20 letters, fixed position)
	Language	English, Chinese
	Iris	Auto/Manual
	Electronic Shutter	1/50s---/100,000s
	Auto Gain	Low/High/off
	Auto Focus	Auto/Manual/once
	Auto White Balance	Auto trace WB/Manual/Indoor/Outdoor/ Fluorescent lamp
	Motion Detection	On/Off(Zone, Sensitivity)
	Special Function	BLC,+ - Slices, Focus-changing Speed(4 levels),Definition
	Preset Points	128
	Communication Interface	RS-485, PELCO-P/D, Baud Rate, Address, PTZ Control
Power Supply	12VDC, ±10%
Working Temperature	-10℃~60℃
Power Consumption	4W

Dimension(mm)	64X61X112.5
Weight	430g

DS-2CM232P

Parameter Model	DS-2CM232P
Image Sensor	1/4 inch SONY Interline Transfer Super HAD CCD
Signal System	PAL
Effective Pixels	PAL:752(H)×582(V)
Synchronous	Internal Synchronization
Horizontal Resolution	480 TVL
Video Output	1Vp-p Composite Output(75Ω/BNC)
S/N Ratio	More than 50dB
Min. Illumination	0.5Lux
Lens	22X Optical Zoom,10X Digital Zoom (OFF/ON)
F1.6, f=mm
Zoom In/Out speed: 3.1s
Menu	Camera ID	On/Off (20 letters, fixed position)
	Language	English, Chinese
	Iris	Auto/Manual
	Electronic Shutter	1/50s---/100,000s
	Auto Gain	Low/High/Off
	Auto Focus	Auto/Manual/Once
	Day&Night	Auto/Color/B&W
	Auto White Balance	Auto trace WB/Manual/Indoor/Outdoor/ Fluorescent lamp
	Motion Detection	On/Off(Zone, sensitivity)
	Special Function	BLC,+ - slices, Focus-changing speed(4 levels), Definition
	Preset Points	128
	Communication Interface	HIKVISION protocol, compatible of SONY VISCA protocol
Power Supply	9-12V DC

Working Temperature	-10℃~60℃
Power Consumption	4W Max
Dimension(mm)	50×55.6×86
Weight	235g

DS-2DF1-401/402

Parameter	DS-2DF1-401(E)	DS-2DF1-402(E)
Camera	Image Sensor	1/4 Inch Interline Transfer SONY CCD	1/4 Inch Sony EXVIEW HAD CCD
	Effective Pixels	PAL:752(H)×582(V) NTSC:768(H)×494(V)
	Horizontal Resolution(TVL)	500(Color),570 (B/W)	530
	Signal System	NTSC/PAL
	Min. Illumination	0.7Lux/FLux/F1.4(ICR ON)	1.0Lux/F1.4
	White Balance	Auto
	AGC	Auto, Manual
	S/N ratio	Better than 50dB
	BLC	ON / OFF
	Electronic Shutter	NTSC:1/60~1/120,000s PAL:1/50~1/120,000s	NTSC:1/4~1/10,000s(20Steps) PAL:1/3~1/10,000s(20steps)
	Day&Night	ICR	Electronic
	Digital Zoom	Up to 10x	Up to 12x
	Privacy Zone	Up to 4 zones	Up to 24 zones, while maximum 8 zones masked simultaneously in one image
	Auto Focus	AUTO
Lens	Focal Length	3.8-38mm, 10x zoom	4.2-42mm, 10x zoom
Zoom Speed	1.7sec (Optical WIDE-TELE )
Angular of View	51.2-5.58 degree(WIDE-TELE)	46-4.6 degree(WIDE-TELE)
Min. Working distance	mm
Pan and Tilt	Pan Range	360°endless
Pan Speed	Manual: approx. 0.7°/s-90°/s or 0.7°/s-120°/s, Programmable in Menu.
Preset: up to approx. 300°/s
Tilt Range	0°~90°(Automatic flip)
Tilt Speed	Manual: approx. 0.7°~60°/s or 0.7°~90°/s, Programmable in Menu.
Preset: up to approx. 160°/s

	Proportional Pan/Tilt Control	YES
	Number of Presets	200
	Auto Mode	OFF / Preset/ Patrol / Pattern / Cruise / Random Scan / Frame Scan
	Patrol	1 / 2 / 3 / 4 / 5 / 6 / 7 / 8
	Pattern	1 / 2 / 3 / 4
	Scheduled Action	Scheduled action: programmable Preset / Patrol/ Cruise / Pattern / Random Scan / Frame Scan.
	Freeze Frame	Freeze Frame during Preset.
	Automatic Flip	YES
	Status Memory	Go to the speed dome last status after reboot
	Park Action	Start to Call Preset / Patrol/ Pattern / Cruise/ Random Scan / Frame Scan, after a Defined Time of Inactivity
	PTZ Position Display	ON / OFF
Network	Ethernet	10Base-T / 100Base-TX, RJ45 connector
	Image Resolution	704×576
	Image Compression	H.264
	Audio Compression	G.722 /16kbps
	Audio Mode	OFF / Audio input / Audio output
	Protocols	TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, PPPoE (FTP, SMTP, NTP, SNMP addible)
	No. of Simultaneous Users	Up to 8 users
	Dual Streams	Support dual streams simultaneously
	Mini SD Memory Card	Manual REC / Alarm REC. Compatible SD card: Kingston and SanDisk high Speed mini card:512M, 1G, 2G. Does not support SDHC standard card at present.
	User/Host Level	3 Levels: Administrator, Camera control, Live only
	Security Measures	User authentication(ID and PW), Host authentication(MAC address)
Client GUI	Camera Control	Pan/Tilt, Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode.
Camera Title	Up to 18 characters
Clock Display	Time:Week:Date,6 formats on the client
Alarm	Alarm Input	1channels input
Alarm Output	1 channels output
Alarm Actions	Preset position 1 ~ 200, Preset Patrol 1 ~ 8, PATROL 1 ~ 4, SD card recording, Terminal output, Notification on Client.
Input/ Output	Monitor Output	1.0V[p-p] / 75Ω,NTSC(or PAL) composite, BNC
Microphone Input	Mic. In(Applicable microphone; Plug-in power type) 2-2.4V[p-p],Input impedance:1KΩ, ±10%

	Audio Output	Audio out, Line level
General	Menu Language	English, Chinese
RS-485 Protocols	HIKVISION, PELCO-P, PELCO-D (addible), self-adaptive
Power Supply	12VDC, or PoE.
Power Consumption	12W max
Working Temperature/Humidity	-10℃ ~ 50℃(indoor),
90% or less(without condensation)
Dimensions	4 inch, Φ145(mm)×159.8(mm)
Weight(approx.)	2kg
